Juniper EX6200 Ethernet Switch

Buy or sell a Used Juniper EX6200 Ethernet Switch. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

Juniper EX6200 Ethernet

Product Details

Manufacturer: Juniper Networks
Part #: Juniper EX6200 Ethernet
Price: Contact Us
Warranty: 90 Days

QUOTE-IT2
SELL-IT
SPEC-SHEET


Juniper EX6200 Ethernet Switch

Spectra buys and sell used and refurbished Juniper EX series Networking products. We offer an industry leading 90 day warranty on all Juniper products. Got one to sell? We can help with that too. Please call or email to sell us your equipment today!

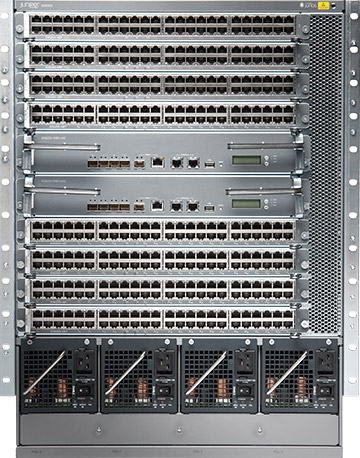

The Juniper EX6200 Ethernet Switch is a 14U, 10 slot chassis that reserves two slots for holding redundant Switch Fabric and Routing Engine (SRE) modules and has eight slots dedicated for 48 port 10/100/1000BASE-T line cards. One redundant SRE can be replaced by an additional line card for higher port densities.

The Juniper EX6200 Ethernet switch is a scalable, resilient, high-performance wiring closet solution for campus deployments or end-of-row access in the data center. it has two line cards available, one with and one without support for IEEE 802.3af Power over Ethernet (PoE) and 802.3at PoE+.

The Juniper EX6200 Ethernet Switch has a carrier-class architecture, coupled with the Junos OS, enables the Juniper E6200 switch to provide carrier-class reliability for every application. Wire-speed performance at high 1GbE, 10GbE, 40GbE and 100GbE port densities dramatically simplifies network topologies and operations.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished Juniper Networks Switches!

Specifications
Form Factor10-slot modular chassis
Dimensions (W x H x D)17.3 x 24.3 x 15.5 in (43.9 x 61.7 x 39.4 cm)
14 rack unit
1 rack unit
Backplane Speed4.4 Tbps backplane capacity
Data Rate128 Gbps (full duplex) per linecard with two SREs installed
64 Gbps (full duplex) per linecard with one SRE installed
Throughput690 Mpps system throughput
40GBASE QSFP+ Port DensitiesN/A
100GBASE CFP Port DensitiesN/A
