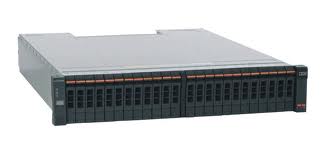

Used IBM Storwize V7000 Storage Array

Buy or sell a Used IBM Storwize V7000 Storage Array. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

IBM Storwize V7000

Product Details

Manufacturer: IBM
Part #: IBM Storwize V7000
Price: Contact Us
Warranty: 90 Days

Quote This Equipment
Sell One Like This
View Spec Sheet


Need Maintenance & Support On This Equipment?

We offer a full range of maintenance and support on IBM storage systems. Find out more about our maintenance services.

Used IBM Storwize V7000 Storage Array

The IBM Storwize V7000 Storage Array is a powerful block storage system that combines hardware and software components to provide a single point of control to help support improved storage efficiency. It is designed to improve application availability and resource utilization by enabling virtualization, consolidation and tiering in businesses of all sizes. The system offers easy-to-use, efficient and cost-effective management capabilities for both
new and existing storage resources in your IT infrastructure.

The IBM Storwize V7000 Storage Arraycombines a variety of IBM technologies including thin provisioning, automated tiering, storage virtualization, IBM Real-time Compression, clustering, highly-efficient, highly-capable, next-generation information infrastructure, whether your storage environment supports a small or midsize organization or a large, complex data center. Optimizing resources through consolidation can reduce costs and improve productivity. Consolidation can also lead to more efficient maintenance and management of your information infrastructure. By enabling you to scale storage efficiently, consolidation can deliver the capacity you need within the budget you have for the performance you want.

Virtualizing your storage infrastructure can optimize your expenditures, resources and capabilities. It allows you to scale system capacity and performance more easily to meet your growing information infrastructure needs, reduce the complexity of management and reduce the risk to your business of system failure.

In server environments, virtualization technologies are often used to improve server utilization, reduce complexity, speed provisioning, consolidate application migration and provide improved flexibility in disaster recovery plans. Storage virtualization is designed to provide similar advantages for your storage environment. Combining storage and server virtualization can build a more powerful virtualized infrastructure for your business and provide greater benefits than either virtualization solution deployed alone.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished IBM storage systems!

Specifications
Host interface SAN-attached 8 Gbps Fibre Channel, 1 Gbps iSCSI and optional 10 Gbps iSCSI/FCoE
NAS-attached 1 Gbps and 10 Gbps Ethernet
User interface Graphical user interface (GUI)
Supported drives 3.5-inch disk drives:

  • 2 TB, 3 TB, 4 TB 7.2k nearline SAS disk

2.5-inch disk drives:

  • 146 GB, 300 GB 15k SAS disk
  • 300 GB, 600 GB, 900 GB, 1.2 TB 10k SAS disk
  • 200 GB, 400 GB E-MLC SSD
  • 1 TB 7.2k nearline SAS disk
RAID levels RAID 0, 1, 5, 6 and 10
Maximum drives supported 240 per control enclosure; 960 per clustered system
Fans and power supplies Fully redundant, hot-swappable
Rack support Standard 19 inch
Management software Storwize V7000 and Storwize V7000 Unified software
Cache per controller/control enclosure/clustered system 8 GB/16 GB/64 GB
Advanced features included with each system System Storage Easy Tier, FlashCopy, thin provisioning, Active Cloud Engine (Storwize V7000 Unified only)
Additional available advanced features Remote mirroring, external virtualization unified storage, FlashCopy Manager, IBM Tivoli Storage Productivity Center Select, Tivoli Storage Manager, Tivoli Storage Manager FastBack, IBM Systems Director, Flex System Manager, IBM Real-time Compression
Replication services FlashCopy, FlashCopy Manager, Metro Mirror (synchronous), Global Mirror (asynchronous), local and asynchronous remote file-based replication
Dimensions Control and expansion enclosures

  • Width: 483 mm (19.0 in.)
  • Depth: 630 mm (24.8 in.)
  • Height: 87.9 mm (3.46 in.)

File Modules

  • Width: 443 mm (17.5 in.)
  • Depth: 698 mm (27.5 in.)
  • Height: 85 mm (3.36 in.)
Weight 12-bay enclosures:

  • Drive-ready (without drive modules installed): 17.7 kg (37.6 lb)
  • Fully configured (12 drive modules installed): 27.2 kg (59.8 lb)

24-bay enclosures:

  • Drive-ready (without drive modules installed): 17.7 kg (37.6 lb)
  • Fully configured (24 drive modules installed): 25.2 kg (55.4 lb)

File modules

  • Maximum configuration: 29.6 kg (65 lb)
