Used IBM Storwize V7000 Gen 2 Storage Array

Buy or sell a Used IBM Storwize V7000 Storage Array. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

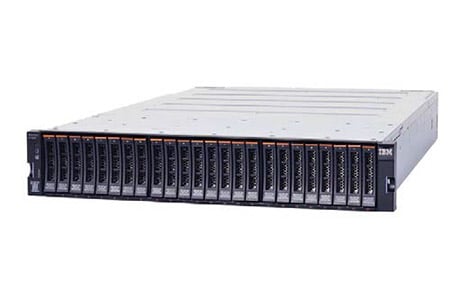

IBM Storwize V7000 Gen 2

Product Details

Manufacturer: IBM
Part #: IBM Storwize V7000
Price: Contact Us
Warranty: 90 Days

Quote This Equipment
Sell One Like This
View Spec Sheet




Need Maintenance & Support On This Equipment?

We offer a full range of maintenance and support options on IBM storage systems. Find out more about our maintenance services.

Used IBM Storwize V7000 Storage Array

Spectra offers a very thorough selection of used IBM V7000 storage systems, expansions and disks with several configuration options. In addition, Spectra provides 3rd party maintenance and support on all IBM V7000, V3700, and V5000 storage systems.

IBM Storwize V7000 is a virtualized storage system designed to consolidate workloads into a single storage system. Used Storwize V7000 SFF Control Enclosure Model 524 features:

  • Two node canisters, each with an 8C processor and 32 GB cache for a system total of 64 GB cache
  • 1 Gb Ethernet ports standard for 1 Gb iSCSI connectivity
  • Up to 2 I/O adapter features for 8 Gb FC and 10 Gb iSCSI/FCoE connectivity
  • Supports up to twenty-four 2.5-inch drives
  • 2U, 19-inch rack mount enclosure

Storwize V7000 offers both LFF and SFF 12 Gb SAS expansion enclosure models. The used Storwize V7000 LFF Expansion Enclosure Model 12F supports up to twelve 3.5″ drives, while the refurbished V7000 Expansion Enclosure Model 24F supports up to twenty-four 2.5″ SFF drives.

A Storwize V7000 Model 524 system scales up to 504 drives (up to 20 expansion enclosures.)  Storwize V7000 systems can be clustered to help deliver greater performance, bandwidth, and scalability. A  clustered system can contain up to four V7000 systems and up to 1,056 drives.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished IBM storage systems!

Host interface SAN-attached 16 Gbps Fibre Channel, 1 Gbps iSCSI and optional 10 Gbps iSCSI/FCoE
NAS-attached 1 Gbps and 10 Gbps Ethernet
User interface Graphical user interface (GUI)
Supported drives 3.5-inch disk drives:

2.5-inch disk drives:

2.5-inch flash drives

RAID levels RAID 0, 1, 5, 6, 10, Distributed
Maximum drives supported 504 per control enclosure; 1,056 per clustered system
Fans and power supplies Fully redundant, hot-swappable
Rack support Standard 19-inch
Management software IBM Spectrum Virtualize software.
IBM Spectrum Scale for Storwize V7000 Unified.
Cores per controller/control enclosure/clustered system 10/20/80
Cache per controller/control enclosure/clustered system 32 or 64 GB/64 or 128 GB/up to 512 GB
Additional available advanced features Remote mirroring, IBM Easy Tier, IBM Real-time Compression, external virtualization unified storage, IBM Spectrum Control, IBM Spectrum Protect Snapshot
Dimensions Control enclosures & File Modules

Weight Control enclosures:

Operating environment Air temperature:

Relative humidity:

Electrical power:

Guarantee

All Spectra provided IBM Storage products are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:

  • Original equipment manufactured and serial numbered numbered by IBM
  • Configured to exact user specifications
  • Fully refurbished to manufacturers standards of new [ETN]
  • All hard drives are 72 hour burn in/Load Tested
  • Complete with manufacturers ship group
  • Provided with 90 day warranty
  • Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnite to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
