Used IBM FlashSystem 5200 Storage Array

Buy or sell a Used IBM FlashSystem 5200 Storage Array. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

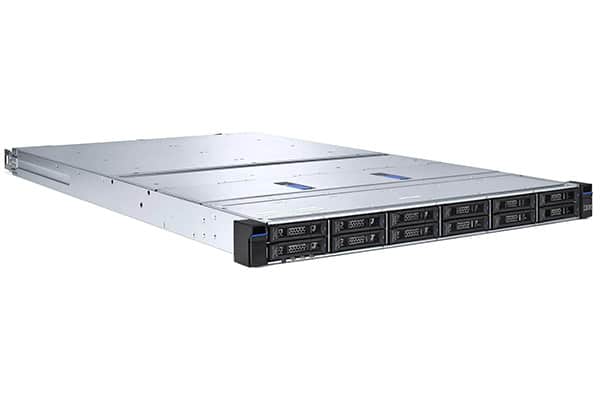

IBM FlashSystem 5200

Model: Flash System 5200

Why is there No Price?

Warranty: Up to 3 Years

Quote This Equipment
Sell One Like This
View Spec Sheet


Need Maintenance & Support On This Equipment?

We offer a full range of maintenance and support options on IBM storage systems. Find out more about our maintenance services.

Used IBM FlashSystem 5200 Storage Array

Spectra offers a very thorough selection of used IBM FlashSystem 5200 storage systems, expansions and disks with several configuration options.

Starting on FlashSystem 5200 the family is NVMe-accelerated with control enclosures that are end-to-end NVMe-enabled, with flexibility to choose and mix between FlashCore Modules, industry standard NVMe drives and storage-class memory. The systems offer industry-leading performance and scalability with support for bare-metal, virtual, and containerized environments.

The IBM FlashSystem 5200 is the most compact storage system ever produced by IBM. It is designed to accelerate a wide range of enterprise deployments with bare metal, virtualized, or containerized servers. Leveraging IBM Spectrum Virtualize, IBM Storage Insights software, end-to-
end NVMe protocols, these new systems bring the performance and functionality needed for almost any workload, delivering a lot more work using fewer drives and rack space than traditional SAS or even traditional flash systems, with as low as 70 microseconds latency3, as much as 1.7 petabytes of usable capacity in only one rack unit, HyperSwap high availability technology, 3-site replication, scalability and data reduction.


Model IBM FlashSystem 5200
Supported drives 2.5-inch NVMe FlashCore Modules (FCM):
• 4.8 TB, 9.6 TB, 19.2 TB and 38.4 TB self-compressing FCM
2.5-inch NVMe flash drives – industry standard:
• 800 GB, 1.92 TB, 3.84 TB, 7.68 TB and 15.36 TB
Storage Class Memory (SCM):
• 375 GB, 750 GB, 800 GB, 1.6 TB
Max Drives Supported 748 per control enclosure; 2,992 per clustered system IBM FlashSystem 5200 control enclosures support the following
• Small form-factor enclosure: 24 x 2.5-inch drives
• Large form-factor enclosure: 12 x 3.5-inch drives
• High-density expansion enclosure: 92 x 3.5-inch drives
Max IOPs 1.5M IOPs
Max Bandwidth 21 GB/s
Rack support 1U – 19-inch” / 29″ depth enclosure
Management software IBM Spectrum Virtualize licensed machine code

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished IBM storage systems!


All Spectra provided IBM Storage products are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:

  • Original equipment manufactured and serial numbered numbered by IBM
  • Configured to exact user specifications
  • Fully refurbished to manufacturers standards of new [ETN]
  • All hard drives are 72 hour burn in/Load Tested
  • Complete with manufacturers ship group
  • Provided with 90 day warranty
  • Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnite to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
