Nexus 7000 M1-Series 48-Port Gigabit Ethernet Module

Buy or sell a Used Cisco Nexus 7000 M1-Series 48 Port Gigabit Module. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

Cisco Nexus 7000 M1-48-Gb

Product Details

Manufacturer: Cisco
Part #: Cisco Nexus 7000 M1-48-Gb
Price: Contact Us
Warranty: 90 Days

Quote This Equipment
Sell One Like This
View Spec Sheet

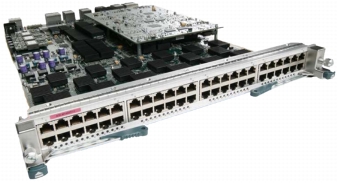

Nexus 7000 M1-Series 48-Port Gigabit Ethernet Module

Subtypes

  • N7K-M148GT-11
  • N7K-M148GS-11

The Cisco Nexus 7000 M1 48-Port Gigabit Modules are highly scalable modules designed for performance-based mission-critical Ethernet networks. Cisco Nexus 7000 M1-Series 48-Port modules have both copper and fiber options for Gigabit Ethernet modules. The copper module is a 48-port 10/100/1000 Ethernet module with RJ-45 connectors, and the fiber module is a 48-port Gigabit Ethernet module with SFP optics.

The Cisco Nexus 7000 Series Switches comprise a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 15 terabits per second (Tbps). Designed to meet the requirements of the most mission-critical data centers, it delivers continuous system operation and virtualized pervasive services. The Cisco Nexus 7000 Series is based on the proven Cisco® NX-OS Software operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. Its innovative design is purpose built to support end-to-end data center connectivity, consolidating IP, storage, and interprocess communication (IPC) networks onto a single Ethernet fabric.

The Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules with 46 Gbps of bandwidth to the fabric are high-performance, highly scalable modules designed for mission-critical Ethernet networks. Populating the Cisco Nexus 7000 18-Slot Switch chassis with these modules delivers up to 768 ports of Gigabit Ethernet in a single chassis. Populating the Cisco Nexus 7000 10-Slot Switch chassis with these modules delivers up to 384 ports of Gigabit Ethernet in a single chassis. The Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules provide 48 Gbps of local switching and are excellent for the access layer of a data center network, in which high density, high performance, and continuous system operation are crucial.

All Cisco Nexus 7000 Series I/O modules contain an integrated forwarding engine. This architecture scales the forwarding performance of the chassis linearly by the number of I/O modules employed. The forwarding engine on the Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules are part of the Cisco Nexus 7000 M-Series forwarding engines.

The M-Series forwarding engine on the Gigabit Ethernet modules delivers 60 million packets per second (Mpps) of Layer 2 and 3 IPv4 unicast forwarding or 30 Mpps of IPv6 unicast forwarding across all ports on a single I/O module. A 10-slot chassis with eight M-Series I/O modules delivers up to 480 Mpps of forwarding. Multicast forwarding is built into the I/O module performing egress replication. The M-Series forwarding engine also delivers access control list (ACL) filtering, marking, rate limiting, and NetFlow with no degradation of performance. Powerful ACL processing supports up to 64,000 entries per module, where entries can address Layer 2, 3, and 4 fields in addition to new Cisco metadata fields that employ security group tags (SGTs).

The Cisco Nexus 7000 M1-Series 48-Port gigabit Ethernet Modules offer exceptional security, with integrated hardware support for Cisco TrustSec® technology. This security includes line rate data confidentiality, data integrity, and ACL processing for Security Group Tags. Data confidentiality and integrity conform to the IEEE MAC security standard (IEEE 802.1AE [MACsec]). All 48 ports on the module support the Advanced Encryption Standard (AES) cipher using a 128-bit key. New security ACLs are enhanced through hardware support for Cisco metadata headers capable of carrying SGTs. Security group ACLs (SGACLs) use SGT information to provide hardware-based enforcement of security policies. This feature removes dependencies on IP addresses, thus improving scalability and simplifying manageability.

The fabric interface on the Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules deliver 46 Gbps of bandwidth in each direction. Traffic destined for a different module is distributed across up to five fabric modules. At least one fabric module is required in the chassis. The installation of two fabric modules in the chassis delivers fabric fault tolerance with no loss of bandwidth.

The Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules buffer data in virtual output queues (VOQs) before the data flows to the fabric. The data flow is controlled by a central arbiter on the supervisor module using a credit-based buffer design. This architecture offers a lossless fabric that delivers quality of service (QoS) and fairness across all ports, even during congestion.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra
is your global source for used and refurbished Cisco Routers and Switches!

Specifications
48-Port 10/100/1000 Ethernet Module (Copper) 48-Port 1 Gigabit Ethernet Module (Fiber)
Software compatibility Cisco NX-OS Software Release 4.0 or later (minimum requirement) Cisco NX-OS Software Release 4.1 or later (minimum requirement)
Product compatibility • Supported in Cisco Nexus 7000 Series 9-, 10-, and 18-slot chassis
• Supported Fabric-1 or Fabric-2 fabric modules
• Supported SUP1, SUP2 or SUP2E Supervisor modules
Memory 1 GB DRAM
Front-panel LEDs • Status: Green (operational), red (faulty), or orange (module booting)
• Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)
• ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces • XML
• Scriptable command-line interface (CLI)
• Cisco Data Center Network Manager (DCNM) GUI
Network management Cisco DCNM 4.0
Reliability and availability OIR
Connectivity 48 ports of 10/100/1000 Ethernet using RJ-45 connectors 48 ports of Gigabit Ethernet using SFP optics
Maximum port density 384 ports of 10/100/1000 Ethernet for 10-slot chassis and 768 ports of 10/100/1000 Ethernet for 18-slot chassis 384 ports of Gigabit Ethernet for 10-slot chassis and 768 ports of Gigabit Ethernet for 18-slot chassis
Time domain reflectometry(TDR) Helps find cable faults
MAC security All 48 ports have built-in IEEE 802.1AE MAC security and an AES cipher with a 128-bit key (requires a software license to enable)
Queues per port • Input: 2 queues and 4 thresholds (RX: 2q4t)
• Output: 1 strict priority queue, 3 Deficit-Weighted Round-Robin (DWRR) queues, and 4 thresholds (TX: 1p3q4t)
Scheduler
DWRR and Shaped Round-Robin (SRR)
Port buffers Ingress: 7.56 MB per port
Egress: 6.15 MB per port
Jumbo frame support for bridged and routed packets Up to 9216 bytes
Performance 60 Mpps Layer 2 and 3 IPv4 unicast and 30 Mpps IPv6 unicast
MAC entries 128,000
Forwarding information base (FIB) entries 128,000
NetFlow entries 512,000 shared (ingress plus egress)
VLANs 16,384 bridge domains and 4096 simultaneous VLANs per virtual device context (VDC)
ACLs 64,000
Policers 16,000
Switch fabric interface 46 Gbps in each direction (92 Gbps full duplex) distributed across up to five fabric modules
Online insertions and removal (OIR) Online insertion and removal
Physical dimensions • Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 14 lb (6.4 kg)
• Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 15.5 lb (7.0 kg)
Power consumption • Typical: 358 watts (W)
• Maximum: 400W
Environmental conditions • Operating temperature: 32 to 104°F (0 to 40°C)
• Operational relative humidity: 5 to 90%, noncondensing
• Storage temperature: -40F to 158°F (-40 to 70°C)
• Storage relative humidity: 5 to 95%, noncondensing
Regulatory compliance • EMC compliance
• FCC Part 15 (CFR 47) (USA) Class A
• ICES-003 (Canada) Class A
• EN55022 (Europe) Class A
• CISPR22 (International) Class A
• AS/NZS CISPR22 (Australia and New Zealand) Class A
• VCCI (Japan) Class A
• KN22 (Korea) Class A
• CNS13438 (Taiwan) Class A
• CISPR24
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN61000-6-1
• EN300 386
Environmental standards • NEBS criteria levels
• SR-3580 NEBS Level 3 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
• Verizon NEBS compliance
• Telecommunications Carrier Group (TCG) Checklist
• Qwest NEBS requirements
• Telecommunications Carrier Group (TCG) Checklist
• ATT NEBS requirements
• ATT TP76200 level 3 and TCG Checklist
• ETSI
• ETSI 300 019-1-1, Class 1.2 Storage
• ETSI 300 019-1-2, Class 2.3 Transportation
• ETSI 300 019-1-3, Class 3.2 Stationary Use
Safety • UL/CSA/IEC/EN 60950-1
• AS/NZS 60950
