Nexus 7000 F3-Series 12-Port 40 Gigabit Ethernet Module

Buy or sell a Used Cisco Nexus 7000 F3-Series 12 Port Module. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

Cisco Nexus 7000 F3-12

Product Details

Manufacturer: Cisco
Part #: Cisco Nexus 7000 F3-12
Price: Contact Us
Warranty: 90 Days

Quote This Equipment
Sell One Like This
View Spec Sheet


Nexus 7000 F3-Series 12-Port 40 Gigabit Ethernet Module

Subtypes

  • N7K-F312FQ-25
  • N7K-F312FQ-25=

The Cisco Nexus 7000 F3-Series 12 Port Module (, ) offers outstanding feature flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture.

The Cisco Nexus 7000 Series Switches are the foundation of the Cisco Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS Software data center switching feature set.

The first in the next generation of data center switching platforms, the Cisco Nexus 7000 Series provides integrated resilience combined with features optimized specifically for availability, reliability, scalability, and ease of management. The Cisco Nexus 7000 Series Switches’ fabric architecture scales beyond 17 terabits per second (Tbps) and is designed to support high-density 10 Gigabit, 40 Gigabit Ethernet, and 100 Gigabit Ethernet deployments. Up to 768 native 10-Gbps ports, 192 40-Gbps ports, and 96 100-Gbps ports can be supported in a single Cisco Nexus 7000 Series chassis.

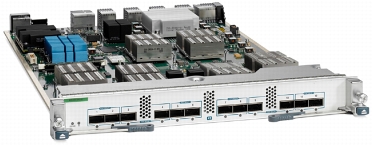

The Cisco Nexus 7000 F3-Series module (Figure 1) is a low-latency, high-performance, high-density 40 Gigabit Ethernet module. It is operationally consistent with the Cisco Nexus 7700 F3-Series modules and shares a common system architecture and the same application-specific integrated circuit (ASIC) technology. Up to 192 wire-rate 40 Gigabit Ethernet ports are supported in a single Cisco Nexus 7000 18-Slot Switch chassis (Table 1).

The Cisco Nexus 7000 F3-Series module is based on the Cisco Nexus F3-Series switch-on-chip (SoC) ASIC. This type of design increases performance while lowering the power and cooling requirements of the module. The Cisco Nexus F3-Series SoC is an innovative Cisco-designed ASIC powered by a flexible packet engine, which makes it excellent for building the network infrastructure for public and private cloud environments. The Cisco Nexus F3-Series engine can support all the foundational networking protocols needed to build Layer 2 and Layer 3 networks, and it also supports highly virtualized environments with virtual overlay networking, hardware support for Cisco Virtual Extensible LAN (VXLAN), and Locator/ID Separation Protocol (LISP) technology. Cisco Nexus 7000 F3-Series hardware enables customers to transparently interconnect their data centers with protocols such as Overlay Transport Virtualization (OTV) and Multiprotocol Label Switching (MPLS) and Virtual Private LAN Service (VPLS).

The module delivers 720 million packets per second (mpps) of distributed Layer 2 and Layer 3 forwarding and up to 480 Gbps of data throughput. A Cisco Nexus 7000 18-Slot Switch fully populated with the Cisco Nexus 7000 F3-Series module can deliver up to 11.5 bpps and 15.4 Tbps of switching performance.

The Cisco Nexus 7000 F3-Series module integrates a broad set of data center switching technologies, including industry standards and Cisco’s own innovations. It combines the benefits of classical fabric interface line cards with the advanced routing features of edge interface modules. With this integration, the module provides exceptional investment protection for organizations consolidating data center environments while migrating to dense multiservice 40 Gigabit Ethernet networks.

Features and Benefits

  • The Cisco Nexus 7000 F3-Series module is powered by the proven and comprehensive Cisco NX-OS feature set. This extremely comprehensive set of Layer 2 and Layer 3 functions makes this module excellent for data center networks, in which density, performance, and continuous system operation are critical.
  • The Cisco Nexus 7000 F3-Series module is a critical enabler of Cisco FabricPath. With Cisco FabricPath, organizations can build resilient, flexible, and if needed, massively scalable Layer 2 networks. Cisco FabricPath protects enterprises’ investments by allowing existing spanning-tree-based deployments to be connected to a Cisco FabricPath network.
  • The Cisco Nexus 7000 F3-Series module can be used in conjunction with the Cisco Nexus 2000 Series Fabric Extenders (FEX). The Cisco Nexus 2000 Series Fabric Extenders are designed to simplify data center architecture and operations by dramatically reducing the number of points of management.
  • The Cisco Nexus 7000 F3-Series module delivers integrated Fibre Channel over Ethernet (FCoE), greatly simplifying the network infrastructure and reducing costs by enabling the deployment of unified data center fabrics to consolidate data center traffic onto a single, general-purpose, high-performance, highly available network. With the Cisco Nexus 7000 F3-Series module, FCoE can be deployed in director-class modular platforms for the access layer and core of converged networks.
  • The Cisco Nexus 7000 F3-Series module provides support for wire-rate VXLAN, offering the architectural flexibility needed to expand cloud deployments with repeatable pods in different Layer 2 domains. VXLAN can also enable migration of virtual machines between servers across Layer 3 networks.
  • The support of advanced data center interconnect (DCI) protocols such as Cisco OTV and VPLS makes the module excellent for helping customers simplify the extension of applications across geographically dispersed data center sites.
  • The Cisco Nexus 7000 F3-Series module supports high-performance MPLS for 40 Gigabit Ethernet data center deployments.
  • Support for Cisco LISP allows enterprises and service providers to simplify multi-homed routing, and it facilitates scalable any-to-any WAN connectivity while supporting data center virtual machine mobility.
  • The virtual device context (VDC) feature helps enable the virtualization of a single physical device in one or more logical devices. Each provisioned logical device is configured and managed as if it were a separate physical device.
  • Configurable Control-Plane Policing (CoPP), which protects the supervisor CPU from excessive traffic
  • Access control list (ACL) counters and logging capability to provide deeper packet visibility
  • Layer 2 to Layer 4 ACL for both IPv4 and IPv6 traffic
  • Cisco TrustSec® technology and ACL processing for security group tags (SGTs)

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra
is your global source for used and refurbished Cisco Routers and Switches!

Specifications
Product compatibilitySupported in all Cisco Nexus 7000 switches chassis
Software compatibilityContact your local account representative for software release availability
Front-panel LEDs• Status: Green (operational), red (faulty), or orange (module booting)
• Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)
• ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces• XML
• Scriptable command-line interface (CLI)
• Cisco Data Center Network Manager (DCNM) web services
• Python
• Tool Command Language (TCL) interpreter
• Cisco Embedded Event Manager (EEM)
• Cisco One Platform Kit (OnePK)
• OpenFlow
Connectivity12 ports of 40 Gigabit Ethernet (QSFP+)
Maximum port density• 192 ports of 40 Gigabit Ethernet in Cisco Nexus 7000 18-Slot chassis
• 96 ports of 40 Gigabit Ethernet in Cisco Nexus 7000 10-Slot chassis
• 84 ports of 40 Gigabit Ethernet in Cisco Nexus 7000 9-Slot chassis
• 24 ports of 40 Gigabit Ethernet in Cisco Nexus 7000 4-Slot chassis
Queues per port4 ingress, 4 egress
Virtual output queue (VOQ) buffer72 MB per module
Jumbo frame support for bridged and routed packetsUp to 9216 bytes
Performance720 mpps of Layer 2 and Layer 3 forwarding capacity for both IPv4 and IPv6 packets
MAC address entries64K
VLAN4096 simultaneous VLANs per VDC
IPv4 entries64K
IPv6 entries32K
Adjacency entries64K
ACLs16K
CoPPSupported
Physical dimensions• Occupies one I/O module slot in a Cisco Nexus 7000 switch chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 15lb (6.8kg)
Environmental conditions• Operating temperature: 32 to 104°F (0 to 40°C)
• Operational relative humidity: 5 to 90%, noncondensing
• Storage temperature: -40 to 158°F (-40 to 70°C)
• Storage relative humidity: 5 to 95%, noncondensing
Regulatory compliance• EMC compliance
• FCC Part 15 (CFR 47) (USA) Class A
• ICES-003 (Canada) Class A
• EN55022 (Europe) Class A
• CISPR22 (International) Class A
• AS/NZS CISPR22 (Australia and New Zealand) Class A
• VCCI (Japan) Class A
• KN22 (Korea) Class A
• CNS13438 (Taiwan) Class A
• CISPR24
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN61000-6-1
• EN300 386
Environmental standards• NEBS criteria levels*
• SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
• Verizon NEBS compliance*
• Telecommunications Carrier Group (TCG) Checklist
• Century Link NEBS requirements*
• Telecommunications Carrier Group (TCG) Checklist
• ATT NEBS requirements*
• ATT TP76200 level 3
• ETSI*
• ETSI 300 019-2-1, Class 1.2 Storage
• ETSI 300 019-2-2, Class 2.3 Transportation
• ETSI 300 019-2-3, Class 3.2 Stationary Use

* Validation in progress
