IBM Power S922 Servers

Buy or sell a Used IBM Power S922 server. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

IBM Power S922 Server

Product Details

Manufacturer: IBM
Model: Power S922
Price: Contact Us
Warranty: 90 Days

Quote This Equipment
Sell One Like This
View Spec Sheet




Need Maintenance & Support On This Equipment?

We offer a full range of maintenance and support options on IBM servers. Find out more about our maintenance services.

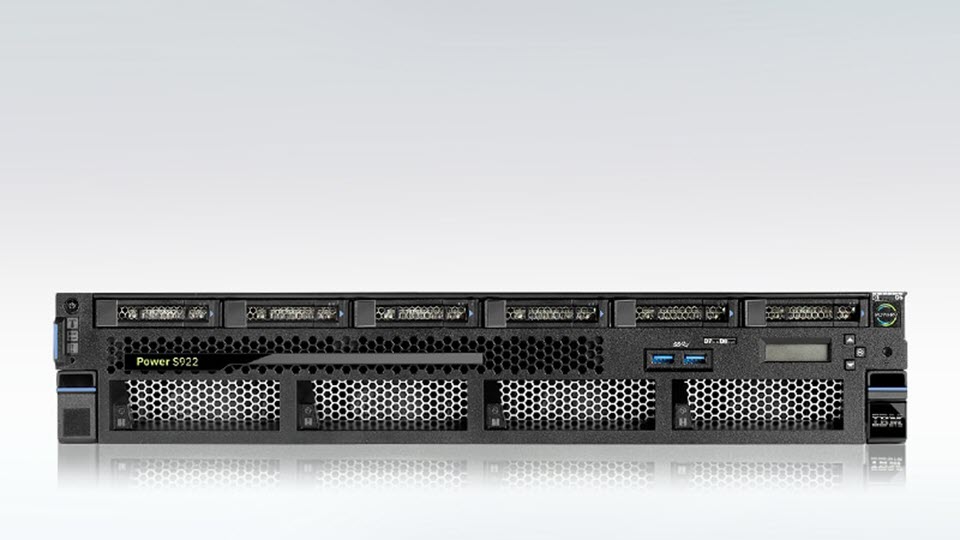

Used IBM® Power System S922

IBM® Power System S922 provides performance, virtualization, reliability and availability to help enrich and expedite your social and mobile solutions in IBM AIX®, IBM i and Linux environments. Combine multiple applications and infrastructure workloads in a virtualized environment to bring more information and capability to social and mobile applications—and bring them to users faster. Based on IBM POWER9™, S922 delivers twice the throughput of Intel-based offerings and superior economics for scale-out deployments. It also makes an ideal foundation for cloud infrastructure to help propel your cloud and cognitive strategy.

With new innovations, Power9 Systems provide the ability to:

  • Gain insights faster
  • Get superior price/performance
  • Connect to cognitive capabilities
  • Deploy, optimize, recover workloads fast
  • Migrate quickly and simply
  • Stay available and secure

Specifications

System configurations Model 9009-22A
Processor and Memory
Microprocessors 4-core Typical 2.8 to 3.8 GHz (max) POWER9 Processor
8-core Typical 3.4 to 3.9 Ghz (max) POWER9 Processor
10-core Typical 2.9 to 3.8 Ghz (max) POWER9 Processor
Memory Up to 4096 GB of DDR4 memory
Storage and I/O
Storage Backplane Options Base Storage Backplane 8 SFF-3 Bays
Split feature to 4+4 SFF-3 Bays: Add a second SAS Controller
Expanded Function Storage Backplane 8 SFF-3 Bays/Single IOA with Write Cache
Internal Disk Storage SFF bays, one integrated SAS controller without cache, and JBOD RAID 0, 5, 6, or 10
●Optionally, split the above SFF-3 bays and add a second integrated SAS controller without cache.
●Expanded Function Storage Backplane 8 SFF-3 Bays/Single IOA with Write Cache.
●Optionally, attach an EXP12SX/EXP24SX SAS HDD/SSD Expansion Drawer to the single IOA.
Adapter slots ●PCIe slots with single processor:
– One x16 Gen4 low-profile, half-length slot (CAPI)
– One x8 Gen4 low-profile, half-length slot (with x16 connector) (CAPI)
– Two x8 Gen3 low-profile, half-length slots (with x16 connectors)
– Two x8 Gen3 low-profile, half-length slots (one of these slots is used for the required base LAN adapter)
●PCIe slots with two processors:
– Three x16 Gen4 low-profile, half-length slots (CAPI)
– Two x8 Gen4 low-profile, half-length slots (with x16 connectors) (CAPI)
– Two x8 Gen3 low-profile, half-length slots (with x16 connectors)
– Two x8 Gen3 low-profile, half-length slots (one of these slots is used for the required base LAN adapter)
Connectivity, System Software, RAS features
Connectivity support (optional) I/O ports Standard features One front USB 3.0 ports
Two rear USB 3.0 ports
Two HMC 1 GbE RJ45 ports
One system port with RJ45 connector
1x USB 3.0 front, 2x USB 3.0 rear, 2x HMC 1 GB Eth RJ45 ports, one system port with RJ45 connector, 2x High Speed 25 Gb/s ports
RAS features Processor instruction retry
Selective dynamic firmware updates
Chip kill memory
ECC L2 cache, L3 cache
Service processor with fault monitoring
Hot-swappable disk bays
Redundant cooling fans
Operating systems* AIX 7.2 TL2
AIX 7.2 TL0, TL1 (P8 Compatibility Mode)
AIX 7.1 TL4, TL5 (P8 Compatibility Mode)
AIX 6.1 TL9 (P7 Compatibility Mode)
IBM i 7.3 TR4
IBM i 7.2 TR8
Ubuntu 16.04.4 LTS (P8 Compatibility Mode)
RedHat RHEL 7.4 LE (P8 Compatibility Mode)
SuSE SLES 11 SP4 (P8 Compatibility Mode)
SuSE SLES 12 SP3

Since 1982, Spectra is your global source for used, new and refurbished IBM, specializing in IBM POWER servers.

Select from the list on the left, the specific IBM model you require.

If you can’t find the IBM equipment you need, please call us at (714) 970-7000 to determine current availability. For quickest response, please complete the buy/sell form on the right.

Guarantee

All Spectra provided IBM server products are put through a rigorous refurbishment, reconditioning and testing process.

We guarantee our products to be:

  • Original equipment manufactured and serial numbered numbered by IBM
  • Configured to exact user specifications
  • Fully refurbished to manufacturers standards of new [ETN]
  • All hard drives are 72 hour burn in/Load Tested
  • Complete with manufacturers ship group
  • Provided with 90 day warranty
  • Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnite to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
