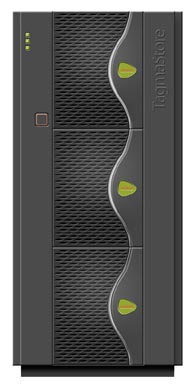

HDS – Entry TagmaStore Array
Part #: Hitachi USP100
Price: Contact Us
Warranty: 90 Days
Need Maintenance & Support On This Equipment?
We offer a full range of maintenance and support on Hitachi storage systems. Find out more about our maintenance services.
HDS – Entry TagmaStore Array
Spectra is your global source for purchasing and selling used, refurbished and decomissioned Hitachi TagmaStore USP100 arrays, chassis and drives. We have a large inventory of used and refurbished Hitachi USP100 disk arrays in stock which are available for immediate delivery. Along with the TagmaStore USP100 arrays, we also carry numerous other peripherals.
Our used Hitachi TagmaStore USP100 disk arrays go through a rigorous refurbishing process and all of our used Hitachi USP100 equipment comes with a 90 day warranty.
If you cannot find the used or refurbished Hitachi USP100 equipment you need, please call us at (714) 970-7000 to determine current availability. If you are not sure what you need, we can have a technician contact you to assess which Hitachi TagmaStore USP100 product configuration(s) will best suit your enviornment.
Spectra buys and sells used Hitachi USP100 disk arrays, used Hitachi USP100 chassis and drives. Please contact us if you have any excess or decomissioned Hitachi USP100 equipment that you are looking to sell and we will provide a fair market value quotation. Please send a full configuration of the Hitachi TagmaStore USP100 via our buy/sell form, email firstname.lastname@example.org or call (714) 970-7000.
With capabilities well beyond any other storage system, the Hitachi
TagmaStore™ Universal Storage Platform establishes a new industry category,
reaching previously unattainable levels of consolidation and bringing to reality
the virtualization of internal and external heterogeneous storage into one pool.
This platform provides a comprehensive set of storage and data services
including large-scale virtualization of internal and external heterogeneous
storage for application-centric storage area management and simplified and
unified data replication. As an integral component of Application Optimized
Storage™ solutions, the Universal Storage Platform is the architectural
foundation for matching application requirements to different classes of
The Universal Storage Platform will enable you to deploy applications within a
new framework, fully leverage—and add value to—current investments, and more
closely align IT and business initiatives.
Superior performance: 2 million I/Os per second, 81GB/sec aggregate internal
Superior scalability: 32PB of total storage capacity including up to 332TB of
Superior connectivity: up to 192 Fibre Channel, 64 ESCON, or 48 FICON ports
Powered by the third-generation Universal Star Network™ crossbar switch
Virtualization of internal and externally attached storage
Logical partitioning of internal and externally attached storage resources
Universal replication across heterogeneous platforms
Active workload balancing and tuning
Single-pane-of-glass management with HiCommand® software
Industrial-strength virtualization, replication, migration, and single-pane management across heterogeneous storage systems
Guaranteed application QoS and chargeback capabilities through Private Virtual Storage Machines
Any-to-any data replication
Advanced data lifecycle management
|Integrated Control/Array Frame||Array Frame|
|Height||1,860mm (73.2 in.)||1,860mm (73.2 in.)|
|Width (with two side panels)||782mm (30.77 in.)||650mm (25.59 in.)|
|Depth||925mm (36.42 in.)||925mm (36.42 in.)|
|Minimum Configuration||Maximum Configuration|
|Weight||713kg (1571 lbs)||4,000kg (8080 lbs)|
|Heat||1.88KW/6 (431BTU)||33.56KW (114,611BTU)|
All Spectra provided Hitachi Disk Arrays are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:
- Original equipment manufactured and serial numbered numbered by Hitachi
- Configured to exact user specifications
- Fully refurbished to manufacturers standards of new [ETN]
- All hard drives are 72 hour burn in/Load Tested
- Complete with manufacturers ship group
- Provided with 90 day warranty
- Shipped in a timely manner
Shipping Information and Payment Options
All of our products are professionally packed and fully insured to avoid any damage in transit.
Spectra offers several shipping options to accommodate every need:
From Ground to Overnight to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.
Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
