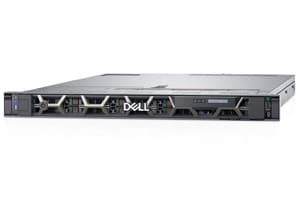

Dell EMC PowerEdge R640 Server

Used Dell EMC PowerEdge R640 Server

The poweredge R640 is the ideal dual-socket platform for dense scale-out data center computing and storage. Benefit from the flexibilty of 2.5” or 3.5” drives, the performance of NVMe and embedded intelligence to ensure optimized application performance in a secure platform. With embedded diagnostics and SupportAssist, the R640 delivers maximum uptime in a worry-free environment.

The scalable business architecture of the R640 is designed to maximize application performance and provide the flexibility to optimize configurations based on the application and use case. With the R640 you can create an NVMe cache pool and use either 2.5” or 3.5” drives for data storage. Combined with up to 24 DIMM’s, 12 of which can be NVDIMM’s, you have the resources to maximize application performance with the optimum configuration in only a 1U chassis.

Key Features

• • Simplify deployments and speed deployments with Dell EMC ready nodes for ScaleIO and VSAN.
  • Maximize storage performance with up to 8 NVMe drives or 12 2.5” drives.
  • Scale compute resources with Intel® Xeon®
  • Scalable delivering a 27% increase in processing cores

and 50% increase in bandwidth over previous generation Xeon processors.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished Dell EMC Server systems.

Processor
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
Memory
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only
Storage
Storage Controllers	Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External- 12Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)
Drive Bays	Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 58TB or up to 4 x 3.5” SAS/SATA HDD max 48TB Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 12TB Optional DVD-ROM, DVD+RW
I/O
Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA, NVIDIA NVS310 available as PCIe card Up to 3 x Gen3 slots, all x16
Deployment
Form Factor	Rack (1U)
OS Support	Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi

Guarantee

All Spectra provided Dell server products are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:

• Original equipment manufactured and serial numbered numbered by Dell
• Configured to exact user specifications
• Fully refurbished to manufacturers standards of new [ETN]
• All hard drives are 72 hour burn in/Load Tested
• Complete with manufacturers ship group
• Provided with 90 day warranty
• Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnite to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
