Cisco UCS C240 M5 Rack Server

Buy or sell a Cisco UCS C240 M5 Rack Server. Multiple configurations are available. Please contact us by phone or filling out our quote form for current pricing and availability.

Cisco UCS C240 M5 Rack Server

Product Details

Manufacturer: Cisco
Part #: UCS-C240-M5
Price: Contact Us
Warranty: 90 Days

Quote This Equipment
Sell One Like This
View Spec Sheet

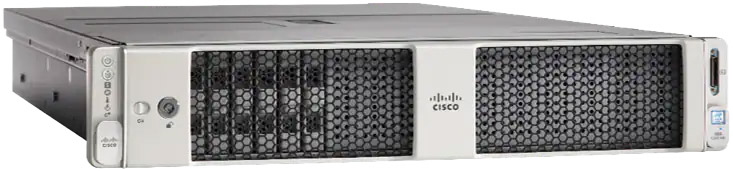

Cisco UCS C240 M5 Rack Server

The Cisco UCS C240 M5 Rack Server is a 2-socket, 2-Rack-Unit (2RU) rack server offering industry-leading performance and expandability. It supports a wide range of storage and I/O-intensive infrastructure workloads, from big data and analytics to collaboration. Cisco UCS C-Series Rack Servers can be deployed as standalone servers or as part of a Cisco Unified Computing System™ (Cisco UCS) managed environment to take advantage of Cisco’s standards-based unified computing innovations that help reduce customers’ Total Cost of Ownership (TCO) and increase their business agility.

In response to ever-increasing computing and data-intensive real-time workloads, the enterprise-class Cisco UCS C240 M5 server extends the capabilities of the Cisco UCS portfolio in a 2RU form factor. It incorporates the Intel® Xeon® Scalable processors, supporting up to 20 percent more cores per socket, twice the memory capacity, and five times more.

Non-Volatile Memory Express (NVMe) PCI Express (PCIe) Solid-State Disks (SSDs) compared to the previous generation of servers. These improvements deliver significant performance and efficiency gains that will improve your application performance. The C240 M5 delivers outstanding levels of storage expandability with exceptional performance, with:

The latest second-generation Intel Xeon Scalable CPUs, with up to 28 cores per socket

● Supports the first-generation Intel Xeon Scalable CPU, with up to 28 cores per socket

● Support for the Intel Optane DC Persistent Memory (128G, 256G, 512G)[1]

● Up to 24 DDR4 DIMMs for improved performance including higher density DDR4 DIMMs

● Up to 26 hot-swappable Small-Form-Factor (SFF) 2.5-inch drives, including 2 rear hot-swappable SFF drives (up to 10 support NVMe PCIe SSDs on the NVMe-optimized chassis version), or 12 Large-Form-Factor (LFF) 3.5-inch drives plus 2 rear hot-swappable SFF drives

● Support for 12-Gbps SAS modular RAID controller in a dedicated slot, leaving the remaining PCIe Generation 3.0 slots available for other expansion cards

● Modular LAN-On-Motherboard (mLOM) slot that can be used to install a Cisco UCS Virtual Interface Card (VIC) without consuming a PCIe slot, supporting dual 10- or 40-Gbps network connectivity

● Dual embedded Intel x550 10GBASE-T LAN-On-Motherboard (LOM) ports

● Modular M.2 or Secure Digital (SD) cards that can be used for boot

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished Cisco servers!

Specifications
Chassis 2RU rack server
Processor Intel® Xeon® Scalable processors (1 or 2) or second-generation Intel Xeon Scalable processors
Memory 24 DDR4 DIMM slots: 8, 16, 32, 64, and 128 GB and up to 2666 MHz

Support for the Intel Optane DC Persistent Memory (128G, 256G, 512G)

PCIe Expansion 6 PCIe 3.0 slots plus 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot
RAID Controllers ● Internal controllers: Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 2- or 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 26 SAS and SATA Hard Disk Drives (HDDs), SSDs, or NVMe PCIe SSDs; or Cisco 12-Gbps Modular SAS Host Bus Adapter (HBA)
● External controller: Cisco 12-Gbps 9400-8e SAS HBA
Internal Storage Backplane options:
● Up to 26 x 2.5-inch SAS and SATA HDDs and SSDs and up to 4 NVMe PCIe drives
● Up to 10 x 2.5-inch NVMe PCIe and 16 SAS and SATA HDDs and SSDs
● Up to 12 x 3.5-inch SAS and SATA HDDs and SSDs, and 2 rear 2.5-inch HDDs and SSDs and up to 4 NVMe PCIe drives
Embedded NICs Dual 10GBASE-T Intel x550 Ethernet ports.

Guarantee

All Spectra
provided Cisco UCS C240 M5 Rack Servers are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:

  • Original equipment manufactured and serial numbered numbered by Cisco
  • Configured to exact user specifications
  • Fully refurbished to manufacturers standards of new [ETN]
  • All hard drives are 72 hour burn in/Load Tested
  • Complete with manufacturers ship group
  • Provided with 90 day warranty
  • Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnight to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
